Android Smart Play Box
RK3566 Android
Media Player
A well-built all-in-one Android smart play box powered by the Rockchip RK3566 quad-core platform — engineered for digital signage, kiosks, and unattended 24/7 display applications.
4K / H.265 Decoding
Android 11 / 13
Wi-Fi + LAN + 4G
7×24h Unattended
It is a well-built all-in-one LCD Android smart play box, using Rockchip RK3566 quad-core chip solution, equipped with Android 11 / 13, main frequency up to 1.8GHz. Using Mali-G52 GPU, it supports 4K/H.265 hard decoding and 1080P video decoding. With U-disk, TF card, Wi-Fi and network port connectivity, it is widely used in advertising machines, interactive all-in-one machines, security, medical care, transportation, finance, and industrial control.
High Performance
Quad-core ARM Cortex-A55 up to 1.8GHz delivers a qualitative leap over common single/dual-core solutions, handling HD video and complex interactive tasks.
High Stability
Proprietary hardware and software integration ensures the final product runs unattended for 7×24 hours with reliable, consistent performance.
High Integration
Ethernet, Wi-Fi, power amplifier, TF expansion, USB and HDMI are all built-in — greatly simplifying whole-machine installation.
High Definition
Supports LCD displays via HDMI, with cropping for a variety of screen sizes and resolutions to fit any installation.
Android 11 / 13
Operating System
Product Catalog · Media Players
Hardware Parameters
| CPU | RK3566, quad-core, up to 1.8GHz |
| GPU | Mali-G52 — OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| RAM | DDR3, 2GB default (4GB optional) |
| Storage | eMMC 16GB (32GB optional) + TF card expansion |
| Display | 1× HDMI output |
| Connectivity | RJ45 100M Ethernet, 2.4G Wi-Fi 802.11 b/g/n |
| Audio | Standard L/R line output |
| USB | 1× USB 2.0 Host, 1× USB 2.0 / OTG |
| Image Rotation | 0° / 90° / 180° / 270° manual rotation |
| Button | 1× recovery button |
| LED | Power status (green), system status (green blink) |
| RTC | Built-in real-time clock |
| Power Adapter | AC 100–240V 50/60Hz in, DC 12V 1.5A out |
| Work Temp | -20°C ~ 60°C (Storage: -30°C ~ 70°C) |
| Humidity | 10% ~ 90% RH |
Software Parameters
| OS | Android 11 / 13, open root permissions, fully customizable |
| Video | H.265, VP8, MAV, WMV, AVS, H.263, MPEG4 + more; 1080P multi-decoding |
| Audio Formats | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP, etc. |
| Image Formats | JPG, BMP, PNG and more |
| Language | Multi-language support |
| Bundled Apps | APK installer, browser, calculator, gallery, camera, music, file explorer, and more |
| Typewriting | Standard Android keyboard; optional third-party IME |
| System Mgmt | OTA remote upgrade, U-disk upgrade, server / standalone mode switch |
| Reliability | Software & system watchdog, self-recovery from crashes |
| Hotspot | Supports Wi-Fi hotspot mode |
| Boot | Customizable boot animation |
| Monitoring | Real-time remote monitoring, 7×24h unattended operation |

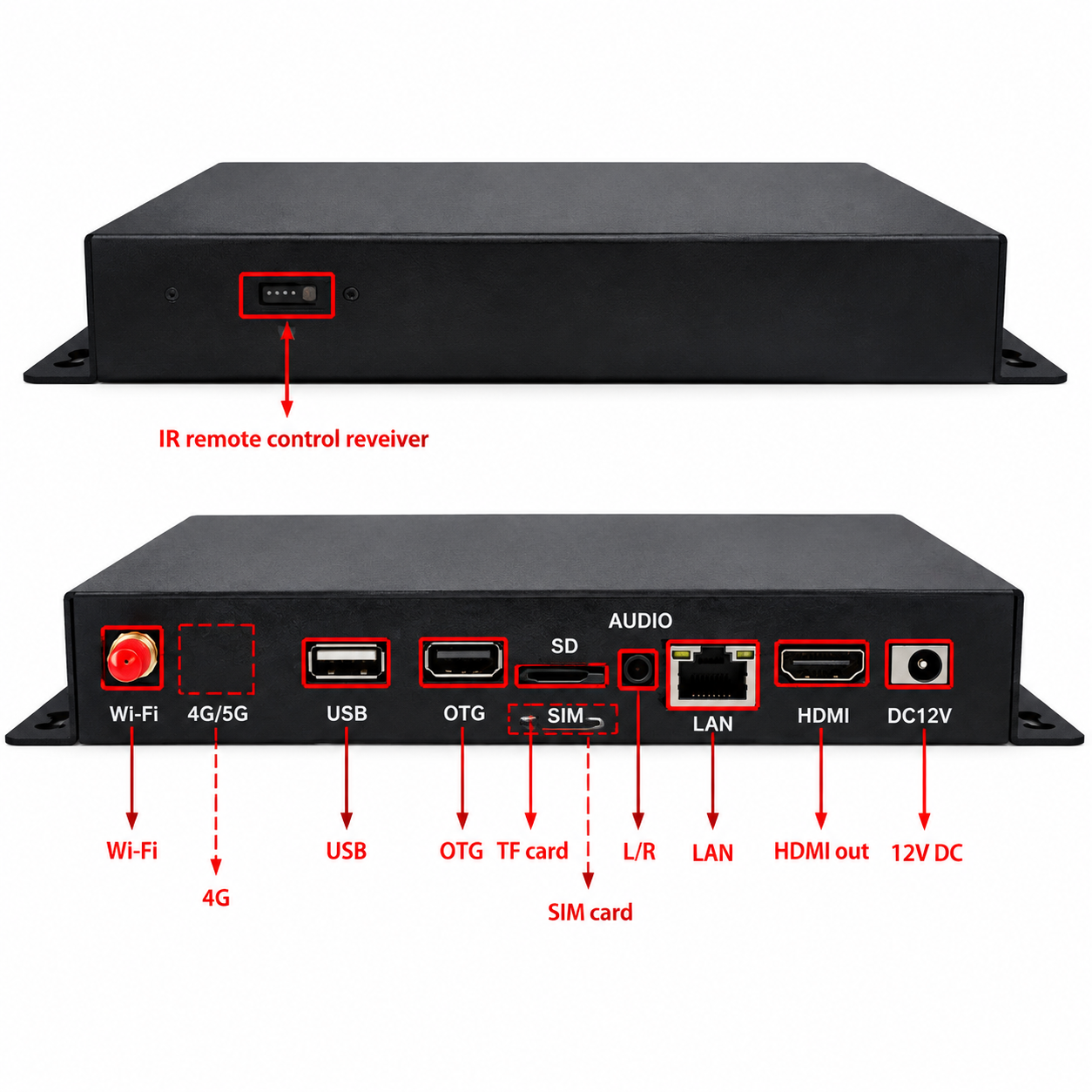

Wi-Fi Antenna port for enhanced signal
4G/5G Optional cellular module port
USB Insert U-disk for content updates
OTG Firmware upgrade / customizable
SD (TF) Card slot for content updates
SIM Optional 4G card slot
Audio 3.5mm L/R output + hidden reset
LAN RJ45 for cluster management
HDMI Output to display / LCD screen
DC 12V Power input
Product size specification (mm) — 202.6 × 106.5 × 27.8
1
Wi-Fi — Mobile APP ManagementNo server required; update content directly via the Mobile Sender app.
2
U-disk & TF CardSupport interstitial content and memory expansion for local updates.
3
LAN / Network CableIntegrated LAN and Internet cluster management.
4
Internet / Cloud PlatformAnytime, anywhere remote management via 4G / LAN / Wi-Fi.
